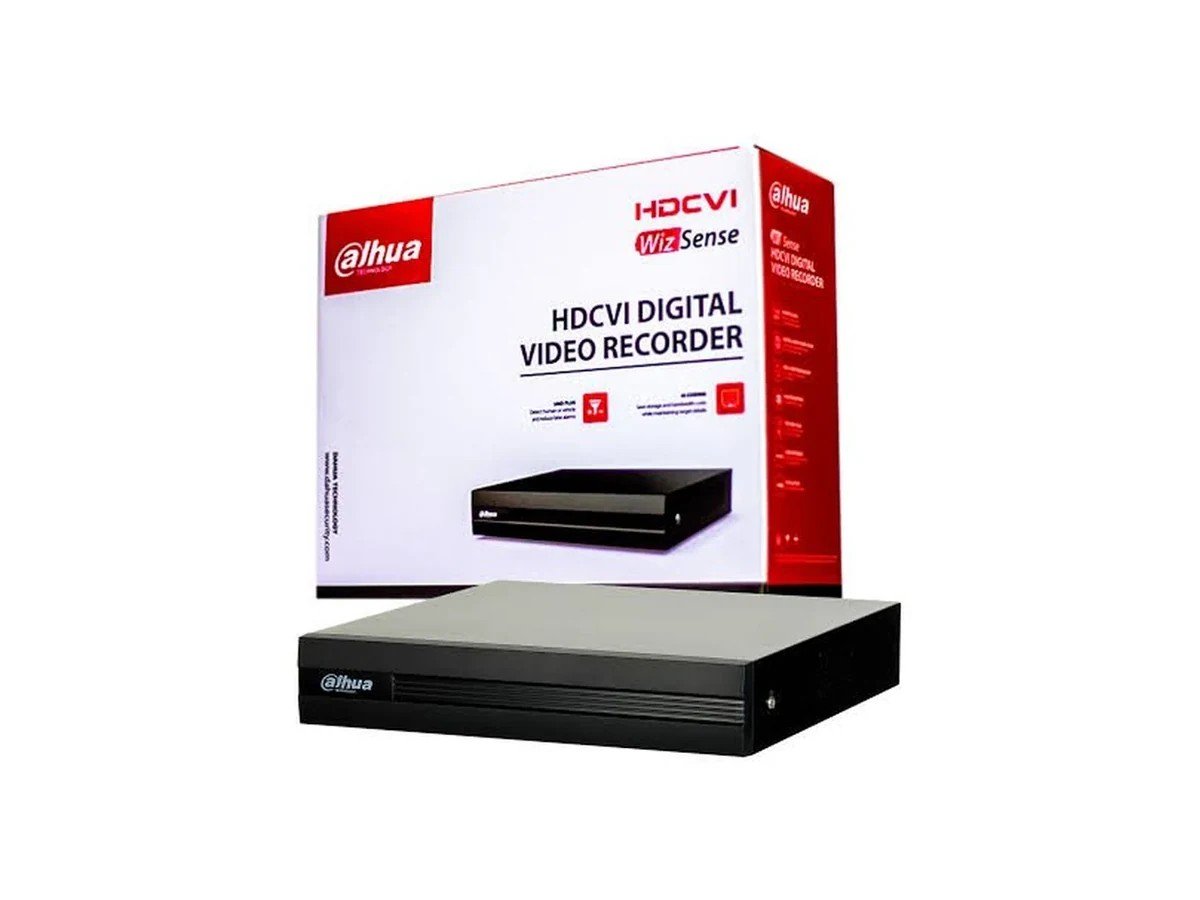

Dahua XVR1B08-I 8-Channel Digital Video Recorder

The XVR1B08-I provides eight analogue video inputs for a compatible mixed-format surveillance system. It offers a central recording point for cameras selected to match its input and encoding capabilities.

Model and connections

Dahua XVR1B08-I 8-Channel Digital Video Recorder: Model: XVR1B08-I. Analogue inputs: Eight channels. Device type: XVR. Video types: HDCVI/AHD/TVI/CVBS and supported IP. Storage: SATA drive specified separately.

Distinguish camera-input resolution from the resolution the recorder actually stores. The supplier identifies 1080N/720P recording in this family, so a two-megapixel camera label must not be treated as a full-resolution recording guarantee. Confirm the exact recorder revision and storage limits.

Building the installation

The supply price applies to the named equipment. Confirm the lens, hardware revision and included accessories where relevant. Cables, storage media, mounting boxes, subscriptions and labour should appear separately on the order unless expressly included. This keeps comparisons between equipment-only and installed-system quotations meaningful.

Compare compatible items in the CCTV camera and recording equipment range when preparing the system schedule. Plan any required monitoring notices alongside the site safety signs and labels, with placement agreed for the intended premises.

Setup and maintenance

Set the correct time and recording schedule, then test playback and export before handover. Check drive health and storage alerts periodically. Keep the unit ventilated and protect it from dust, moisture and unauthorised access. Retention depends on the actual camera streams and recording settings.

Consult the manufacturer product and support information for the exact delivered model. Keep commissioning details available for future changes and limit system access to authorised users. Browse the full safety equipment range when coordinating the remaining building and workplace equipment.
