Mounting Plate

Mounting Plate for Hose Reel Equipment Attachment

A Mounting Plate provides a prepared attachment surface for compatible hose reel equipment, cabinet components or associated supports. The plate can help distribute connection points across the intended mounting area, but its suitability depends on verified dimensions, material, supporting substrate and the actual equipment interface. No structural capacity is inferred from the generic product name.

Coordinate the accessory through AJ Safety Solutions, review the complete hose reel accessories category, and compare the related hose reel equipment range before finalising the assembly.

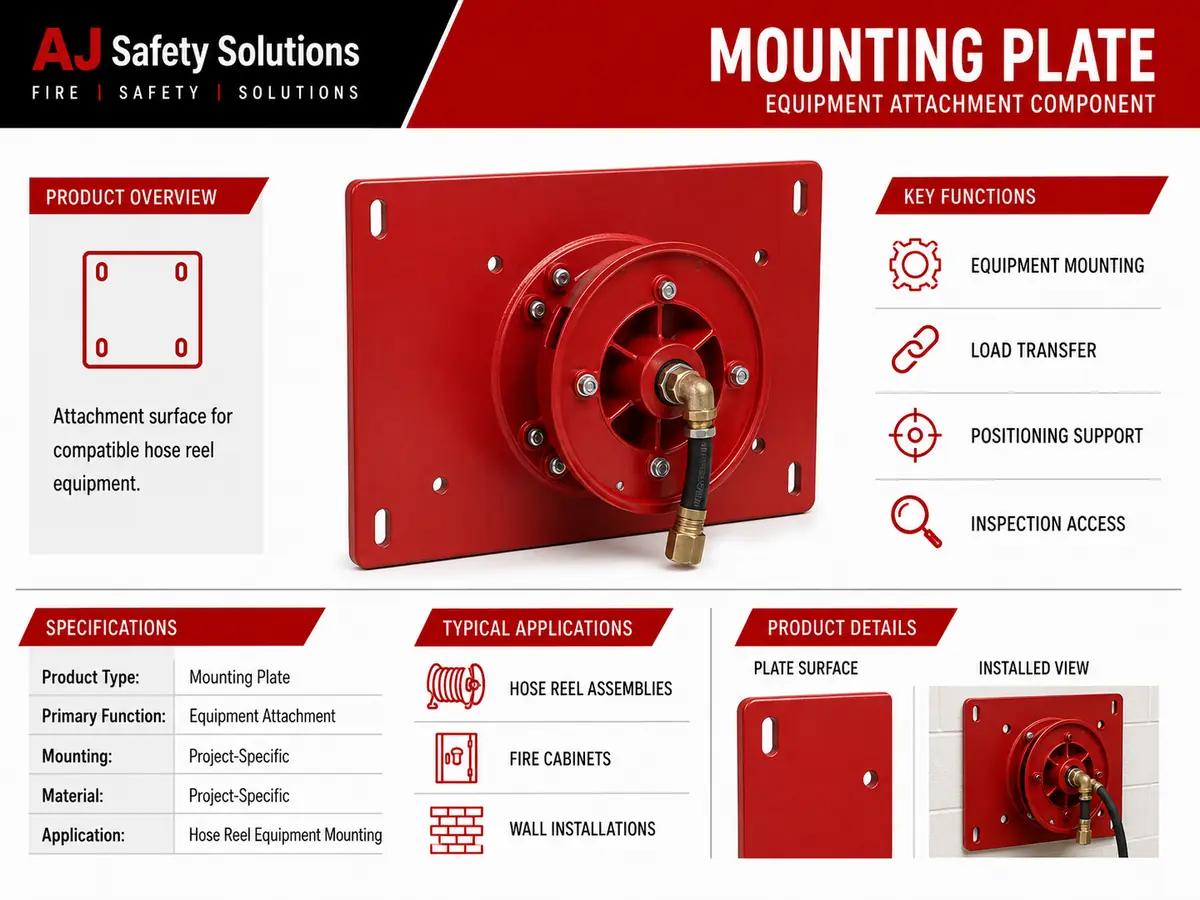

Equipment Attachment Surface

The mounting plate sits between the installed equipment and the supporting structure or enclosure. Its hole pattern and orientation must align with the reel hub, bracket or cabinet components described in the approved drawings. Any slots or openings should be used only as documented for the supplied plate; the illustration does not define a drilling template.

Key Product Considerations

• Provides a defined surface for attaching compatible hose reel equipment.
• Supports positioning between the equipment and mounting location.
• Accessible plate edges and fixing points allow routine visual checks.
• Project-specific configuration supports coordination with the approved layout.

Typical Applications

Mounting plates may be used behind hose reel hubs, inside fire cabinets, at wall installations or during verified replacement work. The plate, reel, supporting wall or frame and all fixings should be evaluated as one assembly so that the installed arrangement matches the project design.

Specification and Ordering Notes

Verify overall dimensions, thickness, hole and slot arrangement, edge distances, material, grade, finish, corrosion protection, allowable load, substrate requirements, fastener type, approval and supplied components. No measurement, hole count, material grade, load rating, certification or included fixing is claimed here.

Inspection and Standards Context

Check the plate for movement, bending, cracking, corrosion, damaged coating, enlarged holes and loose attachment points. Confirm that the connected equipment remains aligned and that inspection access is maintained. Project teams may consult NFPA 14 for relevant standpipe and hose system requirements and NFPA 25 for inspection, testing and maintenance guidance. Adopted codes, approved drawings, manufacturer instructions and the authority having jurisdiction remain controlling.
